16 Port GCOB Service Board

GCOB Board Product Feature

  • 16 GPON ports per card, up to 1:128 split ratio
  • Support ONU power saving management defined in G.987.3
  • 1024 T-CONTs per PON port, 4096 GEM ports per PON port
  • Support color-sensitive RED and WRED discard algorithm
  • Receive 1PPS+TOD signals and send them to the ONU through a PON channel
  • Newly developed lower power GPON MAC chip
  • Reduce 30% power consumption on industry average
  • 1024 queues and 356 schedulers per PON port
分类： ,

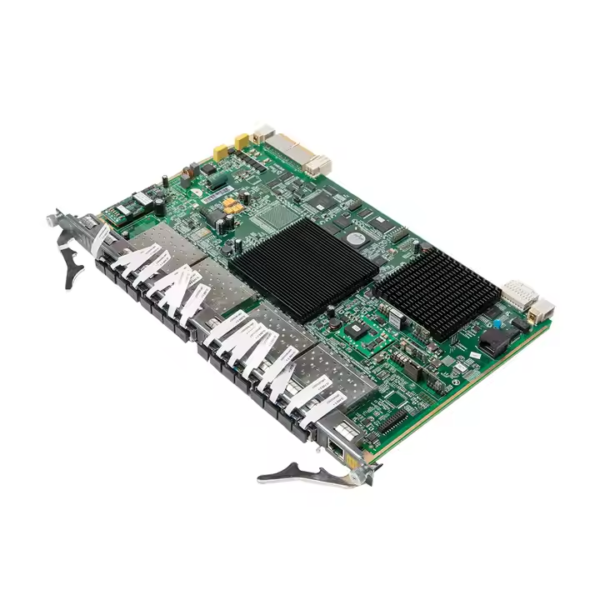

GCOB Board is 16-port GPON Interface Card with C+ /C++ SFP Module for AN5516 series OLT devices.

GCOB Board Product Overview

Fiberhome GCOB Board is 16-port GPON Interface Card with C+ /C++ SFP Module for AN5516 series OLT devices.

AN5516 is a hybrid central office equipment (OLT) meeting the requirements for the high-speed, multi-service, and wide coverage of next-generation optical networks. It is compatible with multiple optical access methods such as EPON, GPON and 10G PON, and meets FTTX. Various application scenarios require a new generation of large-capacity carrier-grade optical fiber access equipment.

Ethernet passive optical network PON technology is aimed at voice, data, video multi-service bearer and carrier-level operations,passive ODN, no electromagnetic radiation, energy saving and environmental protection characteristics, strong adaptability to the deployment environment, and maintenance-free characteristics of ODN have become the technological choice for “optical advancement and retreat” and the construction of next-generation broadband access networks. Large-scale application in the existing network.
