EG8145v5 12lamp GPON 4GE+1VOIP+2.4G 5G WIFI Ac Dual Wifi Dual Band Gpon Onu Xpon Ont

♦ Compliance with IEEE 802.3ah & itu-t g.984.x standard
♦ GPON:8 T-CONTs,32 GEM Ports
♦ Integrate OMCI and TR-069 remote configuration and maintenance
♦ Layer 3 Home Gateway/CPE features with Hardware NAT, support Multiple WAN, Route/Bridge mode, etc
♦ Layer 2 Switching, support 802.1Q VLAN, 802.1P QOS, Bandwidth Control, Spanning Tree, etc
♦ Support PPPoE/ Static IP/ DHCP
♦ Bi-directional FEC
♦ Support IPv4, IPv6 and IPv4/IPv6
♦ Support firewall level Settings, support based on URL/MAC/ IP/ address frame filtering
♦ Support multicast IGMP v2 proxy/ snooping, support MLD proxy/ snooping
♦ Qos supports PQ, WRR, and CAR queue scheduling
♦ Provide 300Mbps 2.4GHz Wireless interface,2T2R external antenna, support multiple SSID Settings,
♦ Support DDSN, ALG, DMZ and UPNP
♦Provide POTS interface, support SIP protocol，POTS integrated circuit test complies GR-909

分类： , , , ,

The EchoLife EG8145V5 is a routing-type ONT in the Huawei all-optical access solution. It uses the GPON technology to implement ultra-broadband access for users.

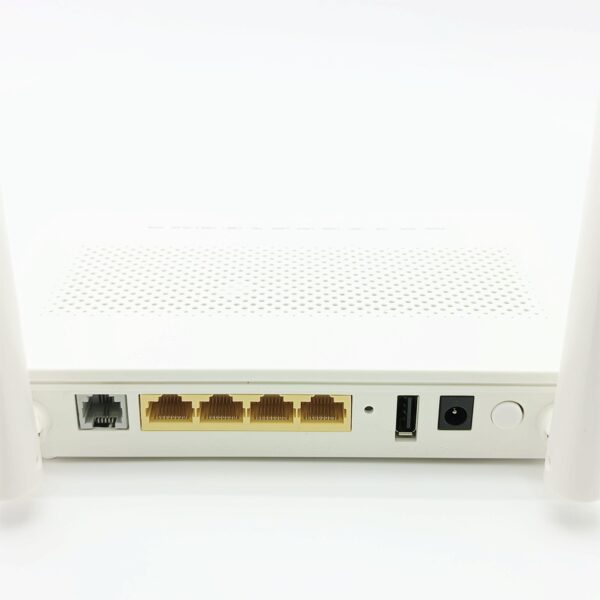

It provides 4 GE ports, 1*POTS ports, 1*USB ports,  and 2.4G&5G WiFi ports. The high forwarding performance ensures the user experience of voice, data and HD video services, and

provides customers with an ideal all-optical access solution and future-oriented service support capability
