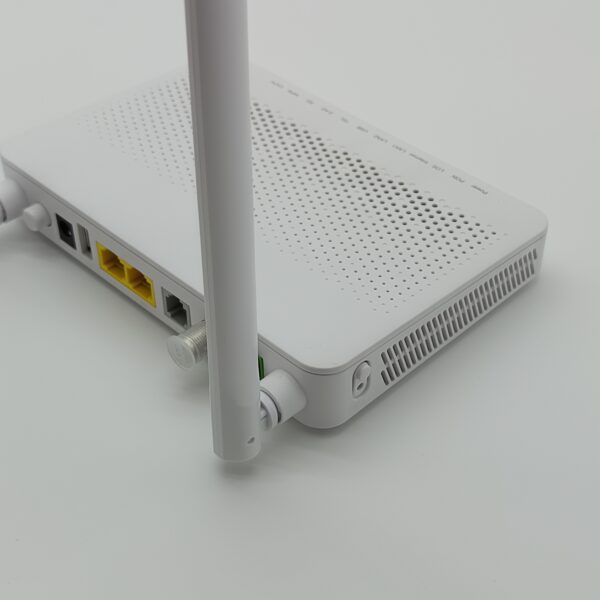

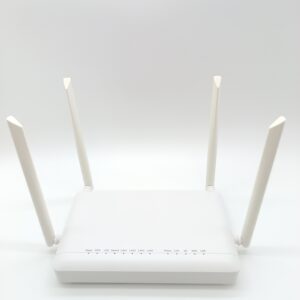

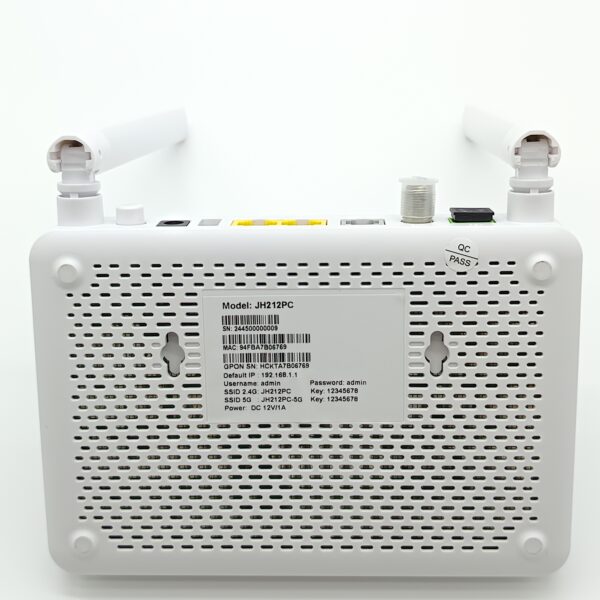

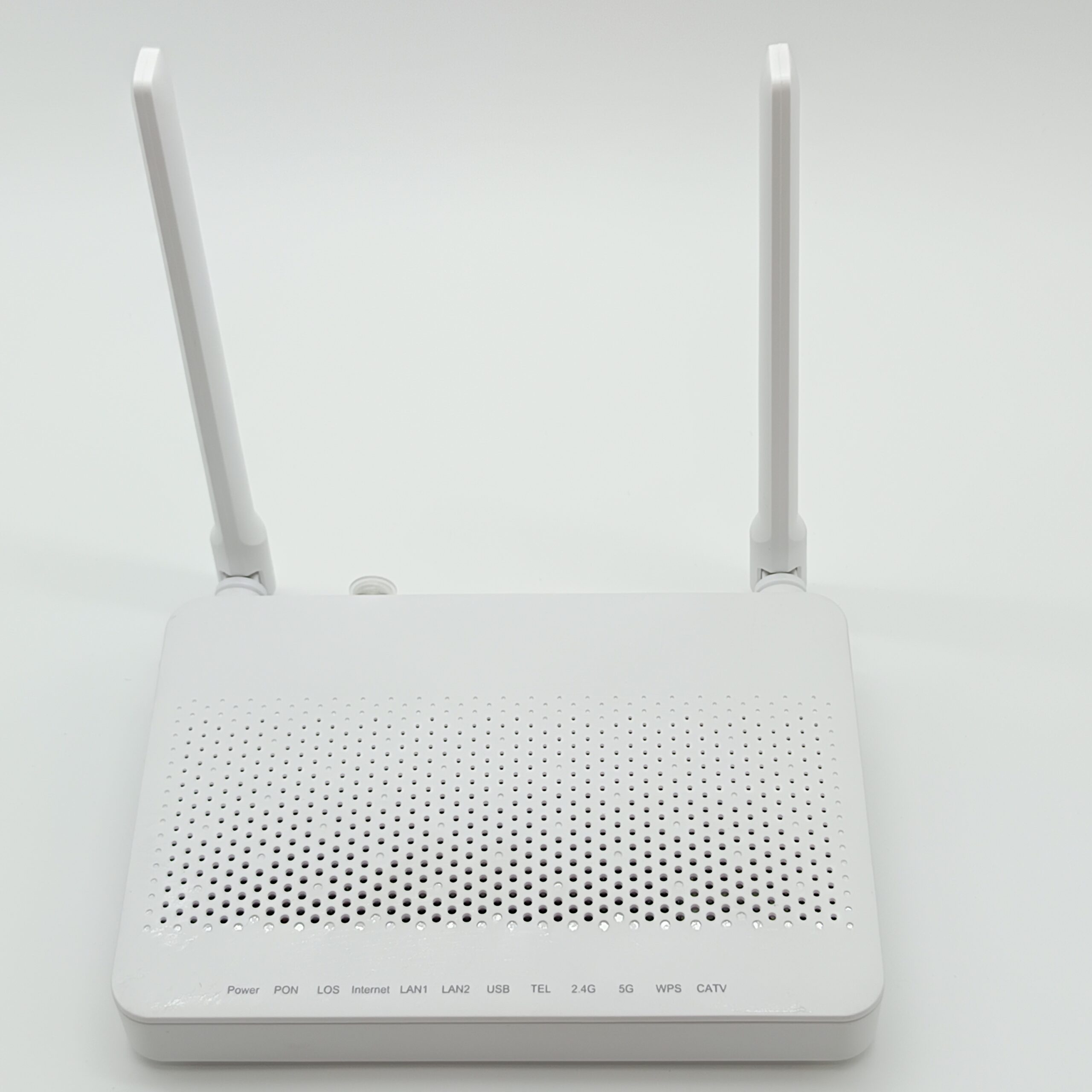

JH212PC WiFi 5 AC1200 DualBand VoIP GPON XPON Router FTTH network equipment

  • XPON Dual Mode
  • SN and LOID+Password multiple registration methods
  • Support VLAN transparent/ tag/ translate/ trunk
  • Support Layer 2 802.1Q VLAN, 802.1P QoS, ACL etc
  • IPv4, IPv6 and IPv4/IPv6 dual stack
  • Support bridge, router & bridge/router mixed mode
  • DHCP v4/v6 Client/Server, PPPoE & Static
  • Support Static Routing
  • Support hardware NAT
  • Support IGMP V2 and MLD proxy/ snooping
  • Support MultiCast VLAN & MultiCast Maximum Address
  • DDoS, Filtering Based on ACL/MAC/URL
  • Support DDNS, ALG, UPnP, Port forwarding, DMZ
  • HTTP/SSH/Telnet Service Access Control
  • Support Parent control
  • Support PPTP , L2TP, Pass-through service
  • Support 4 queues
  • Support SP, WRR, 802.1P and DSCP
  • SIP and IMS SIP
  • G.711a/G.711u/G.722/G.729/G.723/G.726 Codec
  • Echo cancellation, VAD/CNG, DTMF Relay
  • T.30/T.38 FAX
  • Caller Identification/Call Waiting/Call Forwarding/Call Transfer/Call Hold/3-way Meeting conference
  • Line testing according to GR-909
  • Support high-quality broadband voice
  • Integrated 802.11b/g/n/ac
  • Authentication:WEP/WAP-PSK(TKIP)/WAP2-PSK(AES)
  • Modulation type:DSSS,CCK and OFDM
  • Easymesh
  • Support Telnet, CLI, OMCI/OAM ,TR069 and Web management
分类:

JH212PC is 2GE+1POTS+CATV+AC1200 with USB optional XPON(GPON and GEPON dual mode) HGU ONU.The device

is fully comply with ITU-T G.984/G988 and IEEE802.3ah. The equipment integrates the reliability, maintainability and

security design of carrier-grade level, and provides customers with the last kilometer of broadband access to residential

and corporate customers. It can also be applied to a strictly temperature environment, and can work stable for longtime

without service interruption.

JH212PC is interoperable with all brands of OLT and Easy to install, provisioning and maintenance. The device can

identify the working mode of the OLT to automatically complete the switch between GPON and EPON, The device can

be freely switched between bridge and routing modes, and supports PPPoE dial-up and IPv6 functions in routing mode to

meet the needs of different scenarios.
